Geometry Nodes Dynamic Plane Tool

A Geometry nodes tool to deform a plane with curves, also know as a Coons Patch, which is commonly used in CAD software.

The control points can snap together, letting you block out more complex shapes quickly and cleanly.

I have been using this to create some flexible base meshes for that can be edited for future Projects.

Geometry Nodes Overview

Geometry Nodes Overview

Position of Curve Handles drives the whole system

Position of Curve Handles drives the whole system

Bilinear Patch Math

Bilinear Patch Math

Blending the results of each curve ( Edge of plane ) together.

Blending the results of each curve ( Edge of plane ) together.

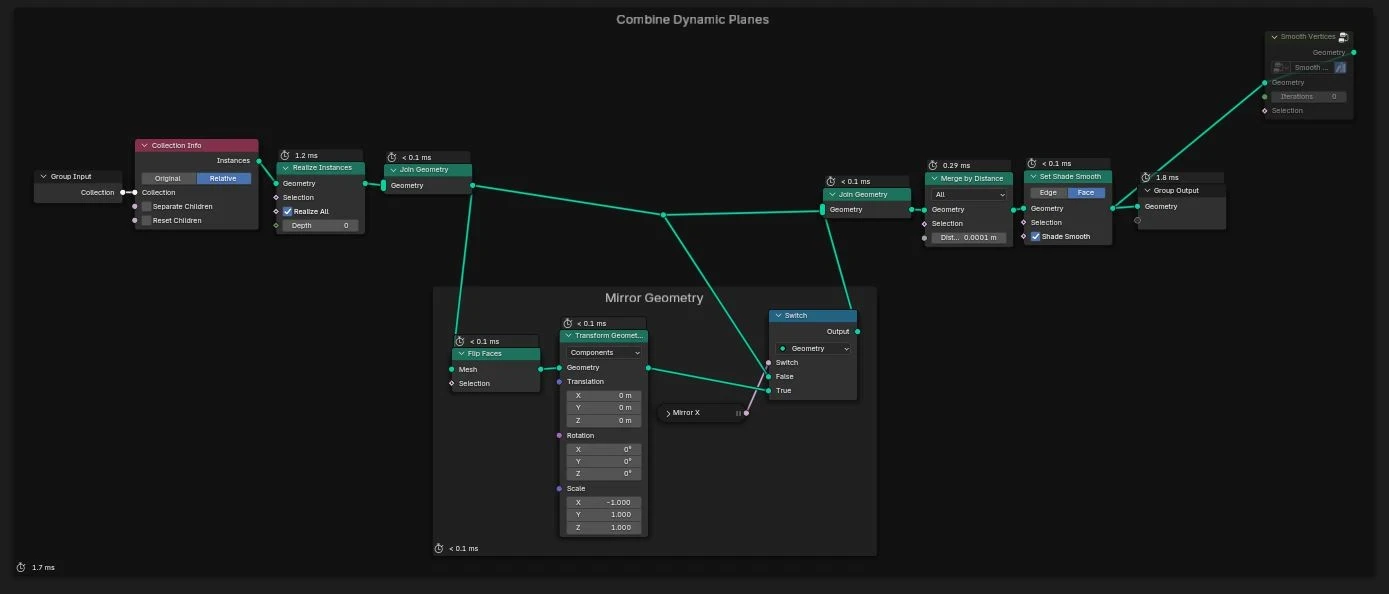

Merging multiple dynamic planes together.

Merging multiple dynamic planes together.
